Fortpro Steer Axle Wheel Stud F286677L/F286677R is a high quality wheel stud designed specifically for steer axles on heavy duty and commercial vehicles. This wheel stud is designed and manufactured to provide a secure and reliable hold under demanding conditions. Manufactured from high-strength steel, the Fortpro Steer Axle Wheel Stud F286677L/F286677R is designed to carry heavy loads and resist the stresses and vibrations associated with use on rough roads and terrain. Its robust construction ensures exceptional strength and long-lasting durability.

Specifications:

• Brand: Fortpro
• Part Type: Wheel Stud / Front Wheel Stud / Left Hand Wheel Stud / Steer Axle Wheel Stud
• Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
• Part OEM: E5982L, E-5982-L (Crossref: E-5982-R)
• DIN / ISO Grade: 10.9
• Type: Headed
• Metric Thread Size: 1 1/8"-16 UN-2A

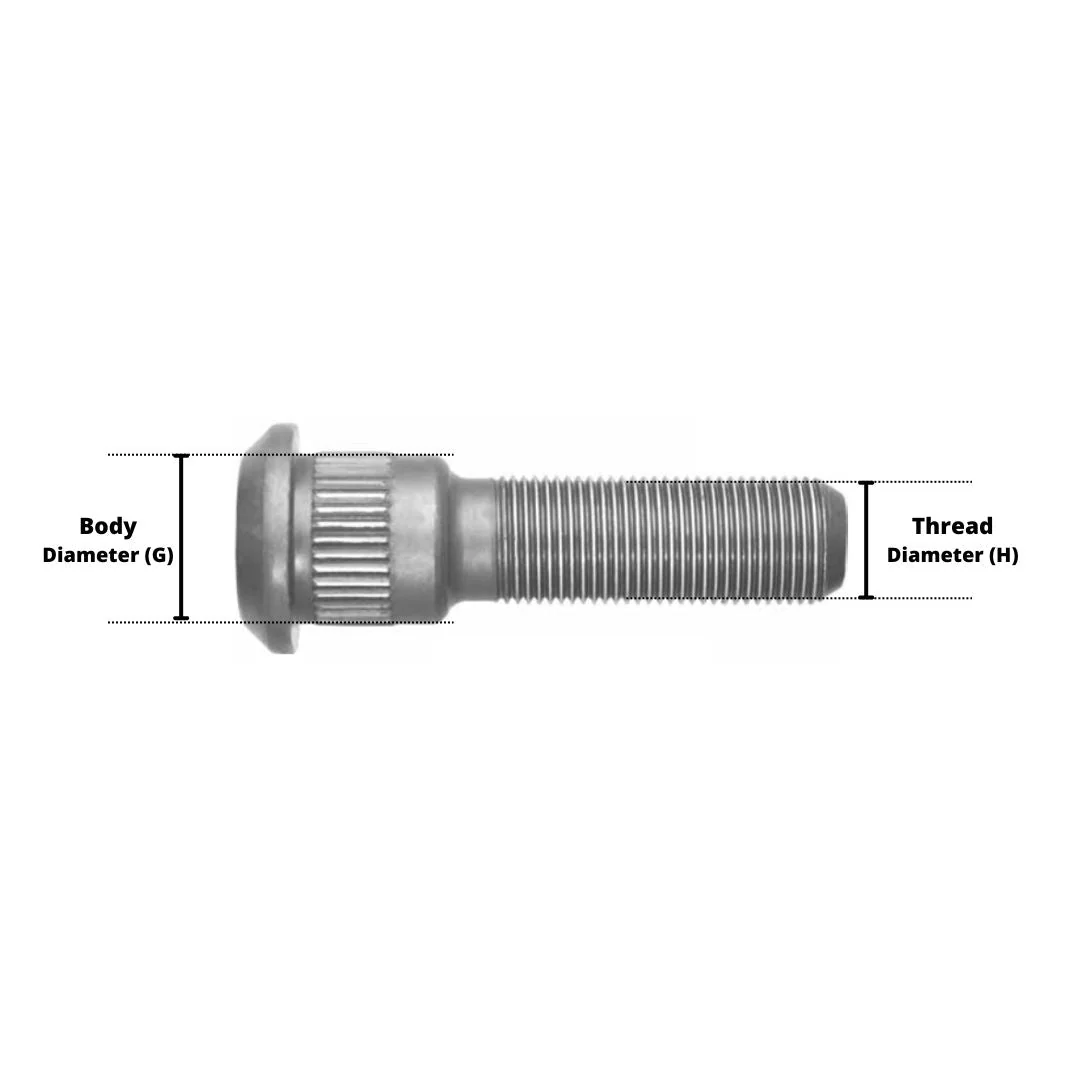

• Body Diameter (G): 1.220"
• Body Length (E): 1.22"
• Length from Under Head (B): 3 3/4"
• Head Style: Round
• Head Thickness: 0.36"
• Head Diameter (F): 1.50"
• Thread Direction: LH (Left Hand)/RH (Right Hand)
• Thread Diameter (H): 1.125"
• Threads per Inch: 16
• Thread Length (C): 2.25"
• Thread (A): 1 1/8"-16
• Serration: Serrated
• Serration Length (D): 0.56"
• Serration Diameter: 1.252"
• Application: Front Wheel Stud for aluminum disc wheels
• VMRS: 018-003-009
• Item Package Quantity: 10
• Notes: Grade 10.9 is the metric equivalent of Grade 8

CrossReference:

• Automann: 2016193L, 2016193R
• BWP: M2431
• Dana: 501097L, 501097R
• Dayton Parts Batco: 131618L, 131618R
• Euclid: E5982L, E5982R
• Kenworth: K233B359L, K233B359R
• National Wheel & Rim: X2134
• Paccar: 0200771, 0201484, K233B359L, PAC15L, K233B359R, PAC15R
• Peterbilt: 02-00771
• Meritor: R005982L, R005982R
• Transit Parts: TP4111L, TP4111R
• World Truck: 1541301L, 1541301R
