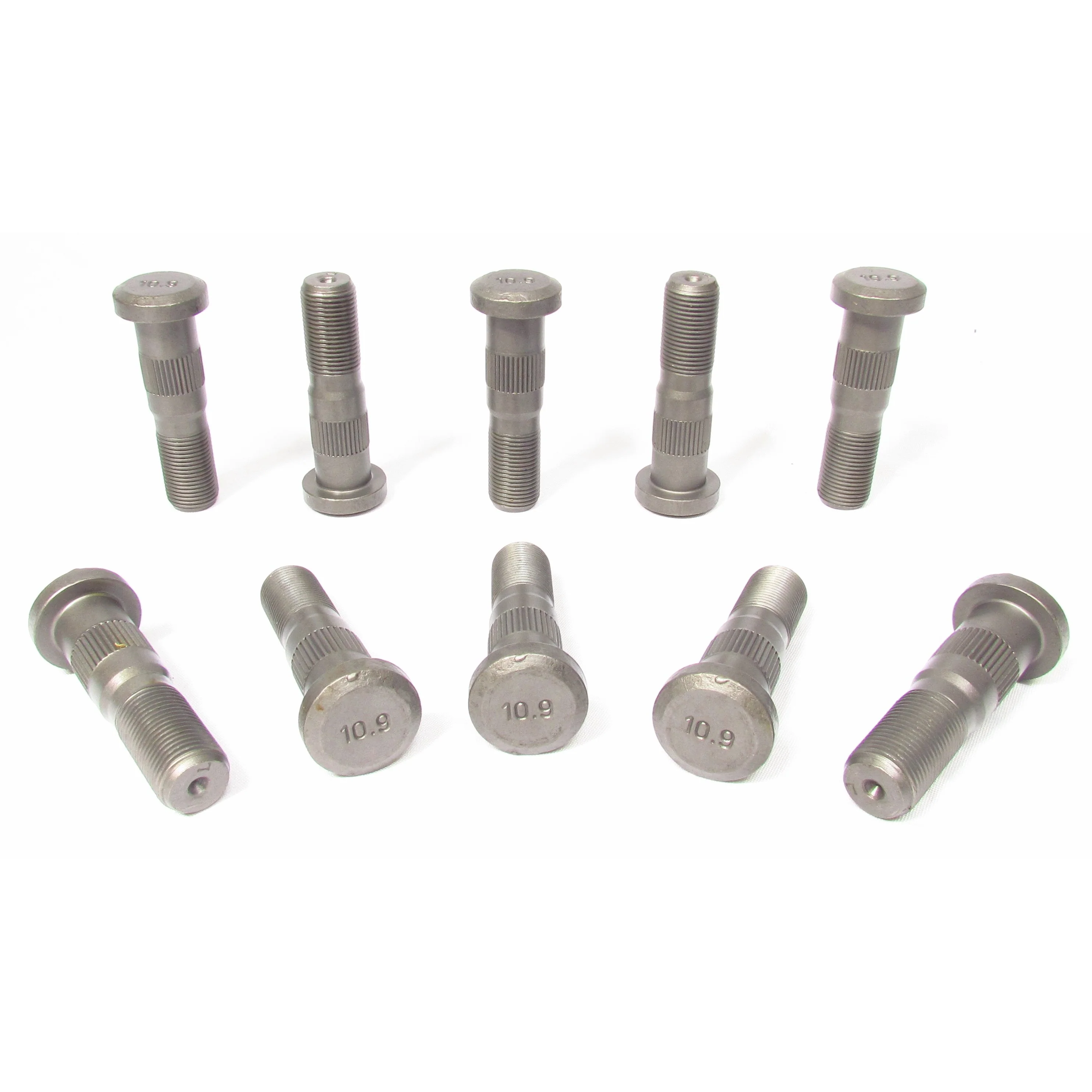

Fortpro 3/4"-16 Serrated Drive Wheel Studs F286681 are high-performance wheel studs that offer exceptional, reliable fastening in demanding automotive applications. With their serrated design, rugged construction, and superior quality, these wheel studs deliver safety and performance on every trip.

Specifications:

• Brand: Fortpro
• Part Type: Wheel Stud / Left Hand Wheel Stud / Serrated Drive Wheel Studs
• Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
• Part OEM: E8947L, E-8947-L, E8947R, E-8947-R
• DIN / ISO Grade: 10.9
• Type: Headed
• Metric Thread Size: 3/4"-16 UNF-2A
• Body Length (E): 1.40"
• Body Diameter (G): 0.785"
• Length from Under Head (B): 2 31/32 "
• Head Diameter (F): 1.28"
• Head Style: Round
• Head Thickness: 0.31"
• Thread (A): 3/4"-16
• Thread Diameter (H): 0.75"
• Thread Direction: LH (Left Hand)
• Threads per Inch: 16
• Thread Length (C): 1.16"
• Serration: Serrated
• Serration Length (D): 0.38"
• Serration Diameter: 0.820"
• VMRS: 018-003-009
• Item Package Quantity: 10
• Notes: Grade 10.9 is the metric equivalent of Grade 8

CrossReference:

• Automann: 2016045L, 2016045R
• Dayton Parts Batco: 131122L, 131122R
• Euclid: E8947L, E-8947-L, E8947R, E-8947-R
• Meritor: R008947L, R008947R
• World Truck: 1681026L, 1681026R
