Fortpro Serrated Drive Wheel Studs F286682 is a reliable choice for securing your wheels. Constructed with high-strength steel, they offer a long-lasting hold. With a 3/4"-16 metric thread and a splined design, they ensure a tight connection and minimize the risk of loosening or unwanted vibration.

Specifications:

• Brand: Fortpro
• Part Type: Wheel Stud / Left Hand Wheel Stud / Serrated Drive Wheel Studs
• Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
• Part OEM: E8949L, E-8949-L, E8949R, E-8949-R
• DIN / ISO Grade: 10.9
• Type: Headed
• Metric Thread Size: 3/4-16 UNF-2A

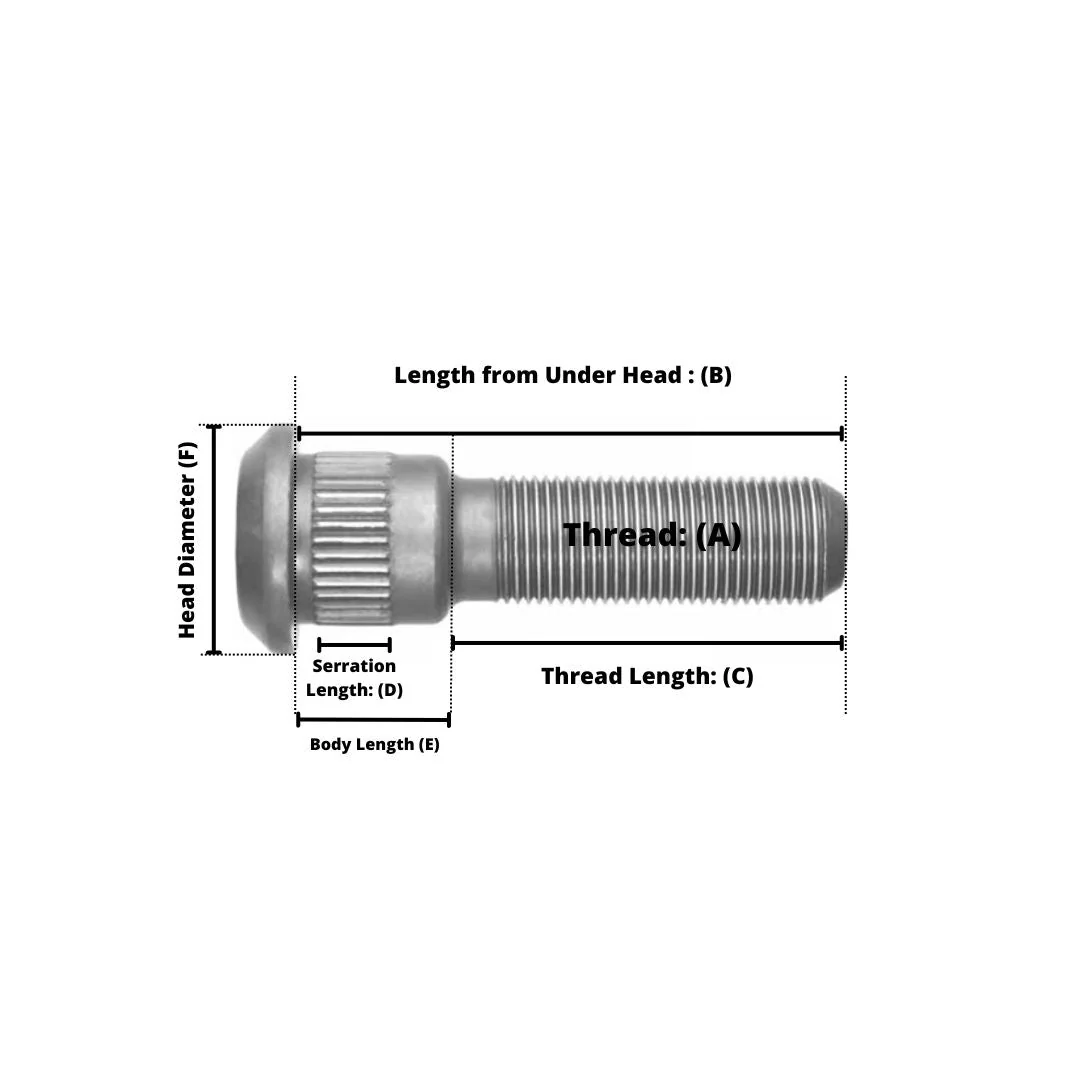

• Body Length (E): 0.98"
• Body Diameter (G): 0.900"
• Length from Under Head (B): 2 19/32"
• Head Diameter (F): 1.25"
• Head Style: Round
• Head Thickness: 0.31"
• Thread (A): 3/4"-16
• Thread Diameter (H): 0.75"
• Thread Direction: LH (Left Hand), RH (Right Hand)
• Threads per Inch: 16
• Thread Length (C): 1.30"
• Serration: Serrated
• Serration Length (D): 0.39"
• Serration Diameter: 0.950"
• VMRS: 018-003-009
• Item Package Quantity: 10
• Notes: Grade 10.9 is the metric equivalent of Grade 8

CrossReference:

• Automann: 201.6097L, 201.6097R
• Euclid: E8949L, E-8949-L, E8949R, E-8949-R

• Ford: E9HZ-1152A
• Meritor: R008949L, R008949R
