Fortpro 3/4"-16 Serrated Drive Wheel Studs F286683 is designed to provide a secure and reliable hold on demanding automotive applications. These wheel studs are constructed of the highest quality materials and meet exacting standards for strength and durability.

Specifications:

• Brand: Fortpro
• Part Type: Wheel Stud / Left Hand Wheel Stud / Serrated Drive Wheel Studs
• Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
• Part OEM: E8969L, E-8969-L, E8969R, E-8969-R
• DIN / ISO Grade: 10.9
• Type: Headed
• Metric Thread Size: 3/4-16 UNF-2A

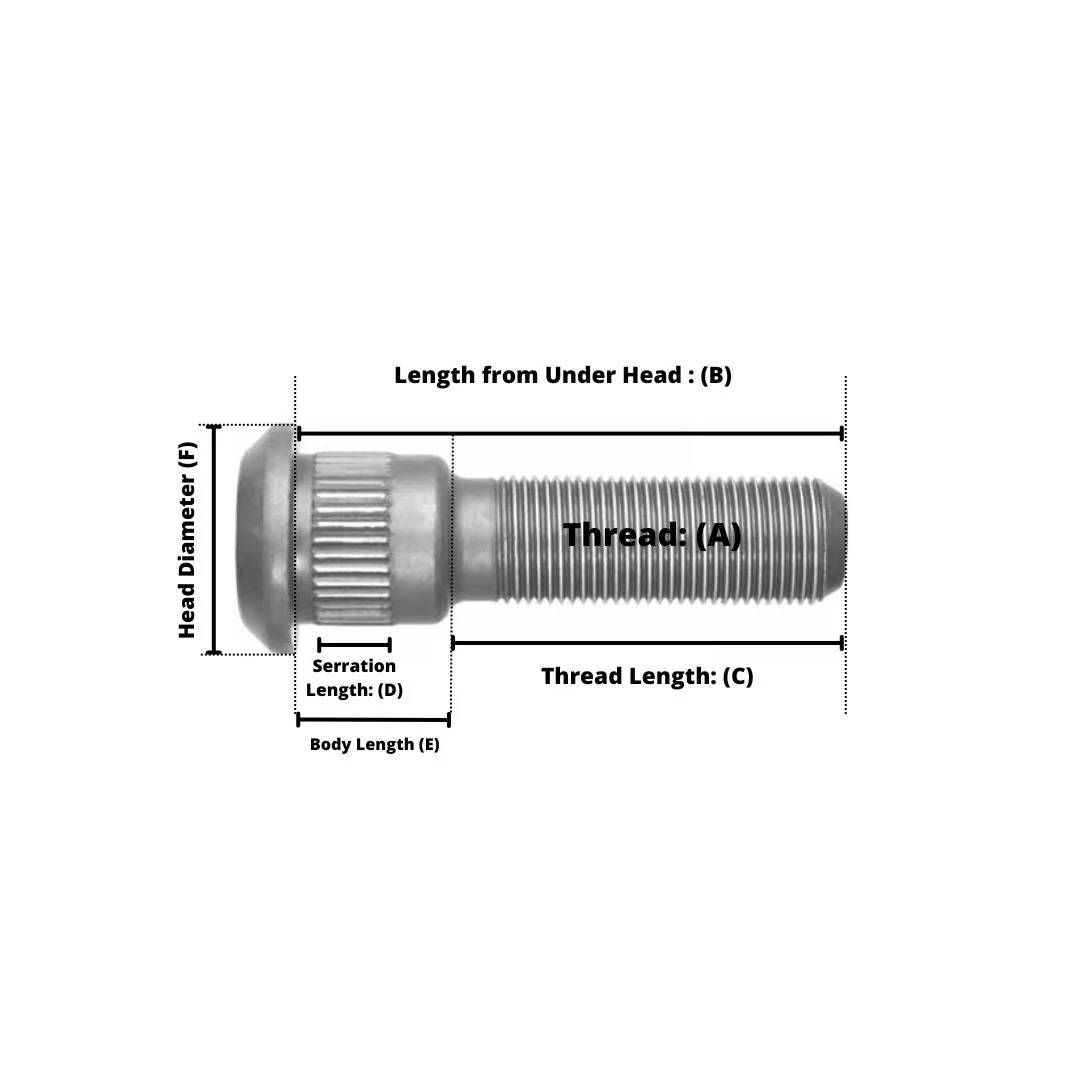

• Body Length (E): 1.28"
• Body Diameter (G): 0.785"
• Length from Under Head (B): 2 15/16"
• Head Diameter (F): 1.28"
• Head Style: Round
• Head Thickness: 0.31"
• Thread (A): 3/4"-16
• Thread Diameter (H): 0.75"
• Thread Direction: LH (Left Hand), RH (Right Hand)
• Threads per Inch: 16
• Thread Length (C): 1.36"
• Serration: Serrated
• Serration Length (D): 0.50"
• Serration Diameter: 0.820"
• VMRS: 018-003-009
• Item Package Quantity: 10
• Notes: Grade 10.9 is the metric equivalent of Grade 8

CrossReference:

• Automann: 2016043L, 2016043R
• Dayton Parts Batco: 131128L, 131128R

• Euclid: E8969L, E-8969-L, E8969R, E-8969-R
• GMC: 15580833, 12386617
• Meritor: R008969L, R008969R

• World Truck: 1681007L, 1681007R
