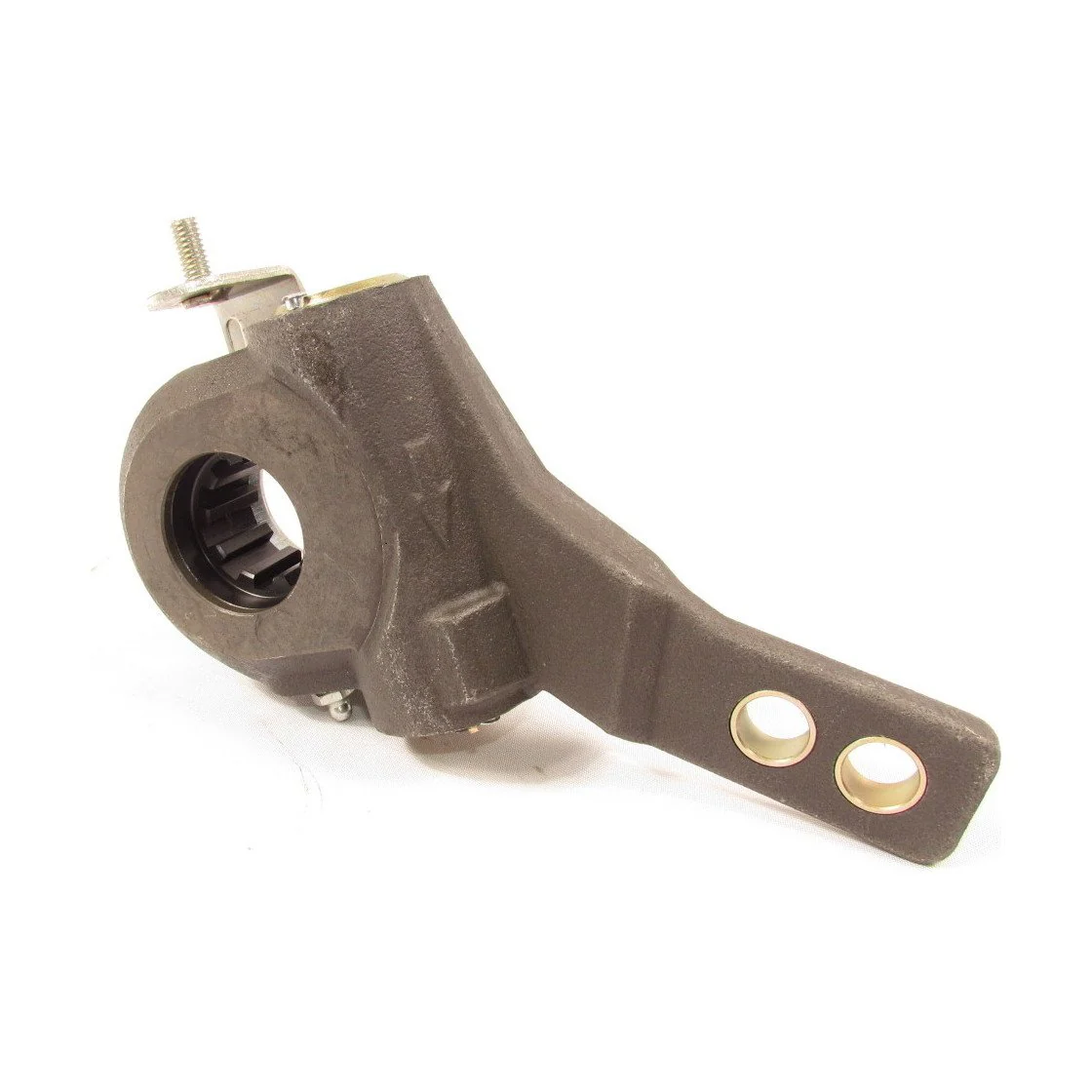

Fortpro Automatic Slack Adjuster 1 1/2" Diameter, 10 Teeth, 5 1/2" - 6 1/2" Arm, Haldex Style Replaces 400-10143 | F224929

Product image 1
1 / 3

Fortpro Automatic Slack Adjuster 1 1/2" Diameter, 10 Teeth, 5 1/2" - 6 1/2" Arm, Haldex Style Replaces 400-10143 | F224929


Specifications:

  • Brand: Fortpro
  • Vehicle Type: Semi-Trucks / Heavy Trucks
  • Product Department: Brakes
  • Product category : Slack Adjuster
  • OEM Reference: 40010143
  • Part Type: Automatic Slack Adjuster
  • Style: Haldex
  • Slack Spline Diameter: 1-1/2 in.
  • Slack Spline Count: 10
  • Arm Length 1: 6-1/2 in.
  • Arm Length 2: 5-1/2 in.
  • Arm Length 3: N/A
  • Model: AA1
  • Clevis Type: Unclevised
  • Clevis Thread Diameter: N/A
  • Maximum Torque Rating: Less than 15 foot pounds
  • Arm Offset: No Offset
  • Arm Bushing(s)Inside Diameter (ID): Arm Hole Diameter5/8 in.
  • Inclination Angle (Body Angle): (-34 °)
  • Maximum Operating Temperature: 158 °F (70 °C)
  • Minimum Operating Temperature: (-40 °F) (-40 °C)
  • Material: Alloy Steel
  • Type of Operation: Tension Adjuster - Torque
  • Chamber Sizes: T-30 Standard Stroke or T-16 / T-24 Long Stroke Chamber
  • Grease Fitting Location: 180 º
  • Anchor Bracket Style: Strap
  • Application: For Standard, Drive Axle Application.Brake Size 16-1/2 in.

CrossReference:

  • Automann: 1331031
  • Bendix: 317166
  • Dayton Parts: 5661
  • Euclid: E6924B
  • Haldex: 400-10143
  • Meritor: R806022A, M807022
  • Stemco: MK41100S
$14.70

Original: $49.00

-70%
Fortpro Automatic Slack Adjuster 1 1/2" Diameter, 10 Teeth, 5 1/2" - 6 1/2" Arm, Haldex Style Replaces 400-10143 | F224929—

$49.00

$14.70

Product Information

Shipping & Returns

Description


Specifications:

  • Brand: Fortpro
  • Vehicle Type: Semi-Trucks / Heavy Trucks
  • Product Department: Brakes
  • Product category : Slack Adjuster
  • OEM Reference: 40010143
  • Part Type: Automatic Slack Adjuster
  • Style: Haldex
  • Slack Spline Diameter: 1-1/2 in.
  • Slack Spline Count: 10
  • Arm Length 1: 6-1/2 in.
  • Arm Length 2: 5-1/2 in.
  • Arm Length 3: N/A
  • Model: AA1
  • Clevis Type: Unclevised
  • Clevis Thread Diameter: N/A
  • Maximum Torque Rating: Less than 15 foot pounds
  • Arm Offset: No Offset
  • Arm Bushing(s)Inside Diameter (ID): Arm Hole Diameter5/8 in.
  • Inclination Angle (Body Angle): (-34 °)
  • Maximum Operating Temperature: 158 °F (70 °C)
  • Minimum Operating Temperature: (-40 °F) (-40 °C)
  • Material: Alloy Steel
  • Type of Operation: Tension Adjuster - Torque
  • Chamber Sizes: T-30 Standard Stroke or T-16 / T-24 Long Stroke Chamber
  • Grease Fitting Location: 180 º
  • Anchor Bracket Style: Strap
  • Application: For Standard, Drive Axle Application.Brake Size 16-1/2 in.

CrossReference:

  • Automann: 1331031
  • Bendix: 317166
  • Dayton Parts: 5661
  • Euclid: E6924B
  • Haldex: 400-10143
  • Meritor: R806022A, M807022
  • Stemco: MK41100S
