Fortpro Double Convoluted Air Spring F245645 is a state-of-the-art air suspension component designed to deliver superior performance in a wide range of commercial and transportation applications. This double contoured air spring has been carefully designed and manufactured from high quality materials to ensure durability and reliability in demanding conditions. Fortpro Double Convoluted Air Spring F245645 offers exceptional load capacity and optimal cushioning from impacts on the road.

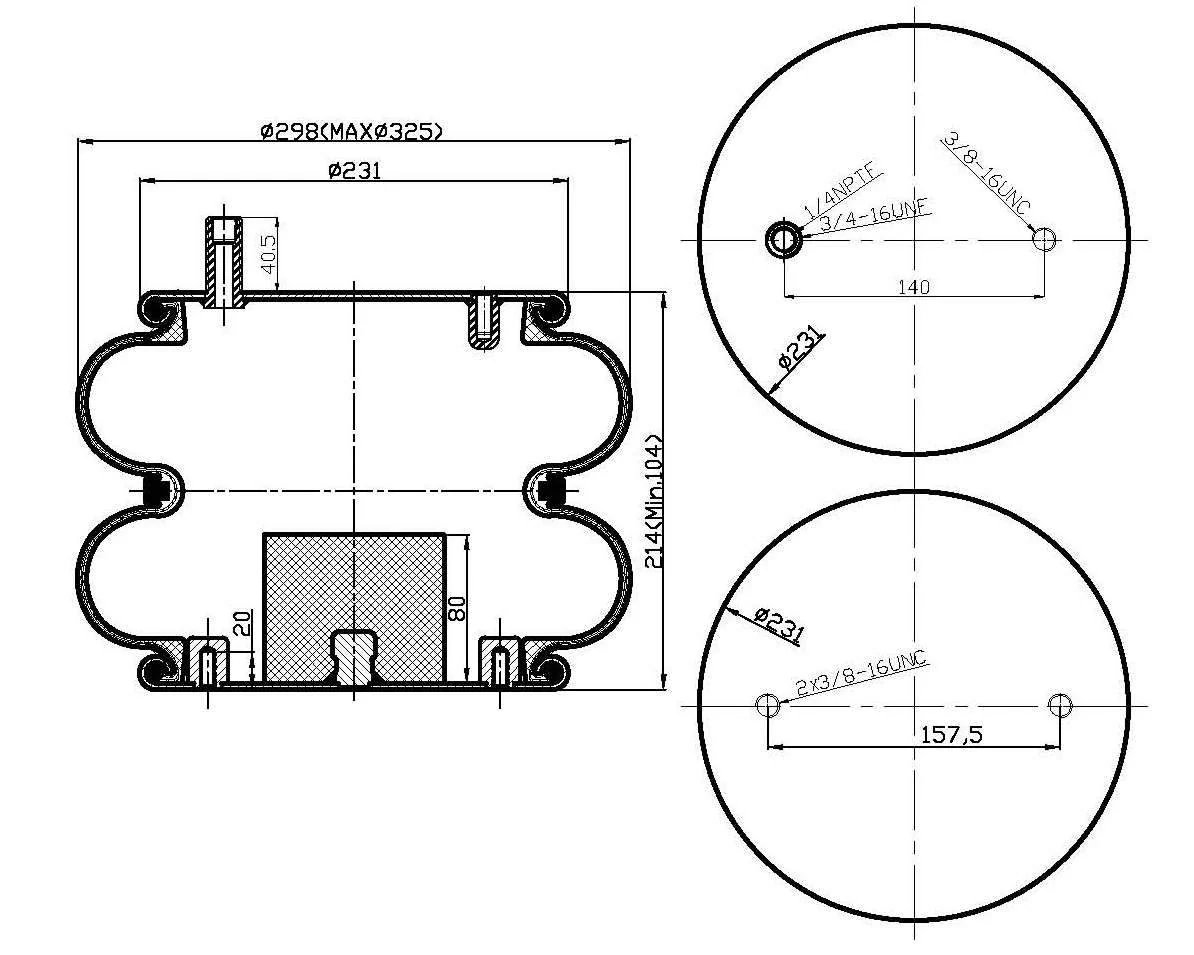

Specifications:

• Brand: Fortpro
• Part Type: Air Spring / Air Spring Bag / Suspension Air Spring
• Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
• Part OEM: 7403, W013587403, W01-358-7403
• Position: Auxiliary / Tag Axle
• Air Spring Style: Convoluted
• Bead Plate Diameter Bottom: 9.00"
• Bead Plate Diameter Top: 9.00"
• Min. Height: 4.20"
• Part Diameter: 12.00"
• Stud Configuration-Bottom: 2
• Stud Configuration - Top: 2
• Weight:: 14.38 lbs
• Application: Granning 2725, Hendrickson Trailer S1159, S2883, Hendrickson Can. B-12514-001 R & S Truck & Body 1040201, Ridewell 1003587403C, Watson & Chalin AS-0007
• VMRS: 016-008-000

CrossReference:

• Automann: 566CT64488, ABSP2B22R7403
• Contitech: FD33022318
• Dayton Parts Batco: 2B12307, 3547403, B1159
• Firestone: 7403, W013587403, W01-358-7403
• Flagg: 4318
• Goodyear: 2B10307, 2B12307, 2B12307, 2B12433, 2B12445
• Hendrickson: 1159, 365141, 7403, 7405, NA1060
• Meritor: FS7403, MAF7403
• Trailmobile: 3057007403, GY2B12307
