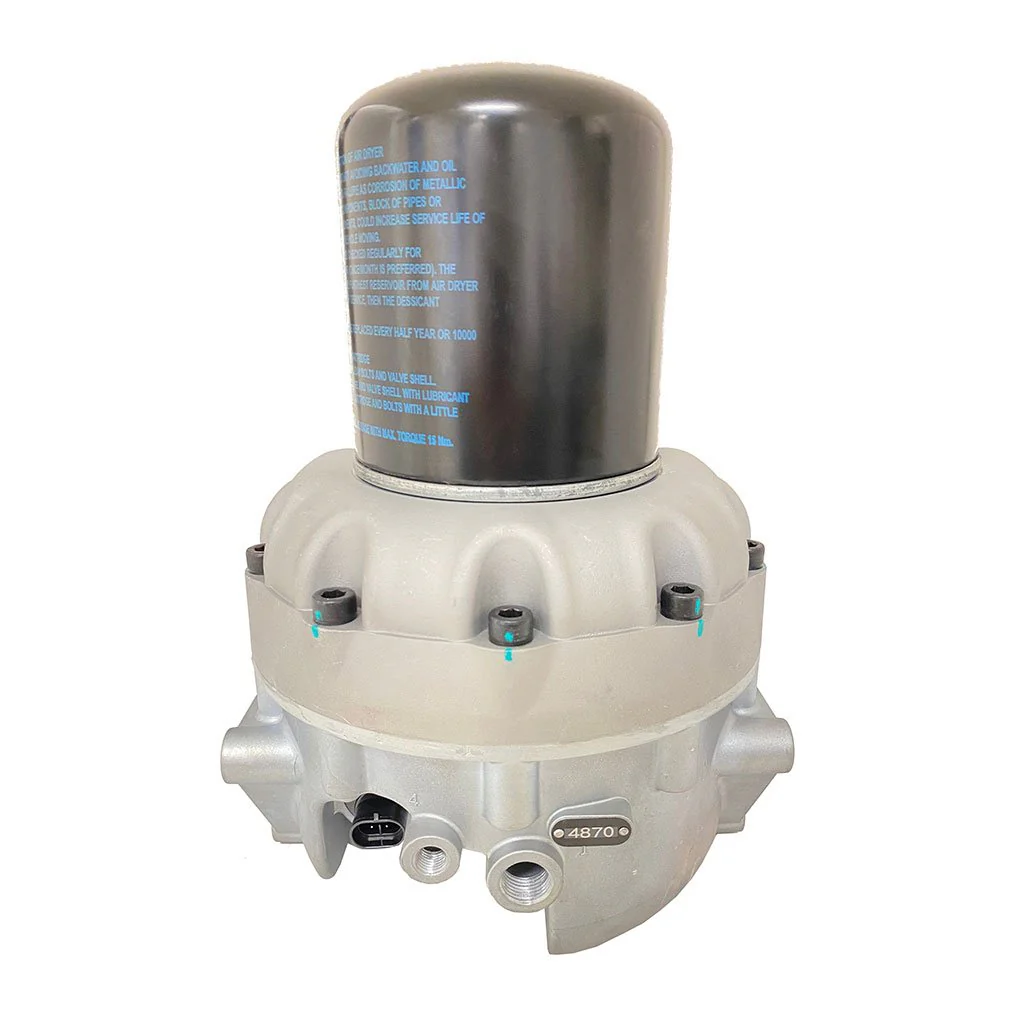

Fortpro Air Dryer System Saver 1200 Style Replacement for Wabco Air Dryer 4324711010 | F224870

Product image 1
1 / 4

Fortpro Air Dryer System Saver 1200 Style Replacement for Wabco Air Dryer 4324711010 | F224870


Specifications:

  • Part Type: Air Dryer
  • Technical Specification: OE specification
  • Cartridge type: Desiccant Cartridge and Oil separator
  • Comments: Turbo-cut-off valve installed
  • Cut-out pressure: 8.7 to 9.4 bar
  • Max. operating pressure: 10.0 bar
  • Opening pressure: 12.8 bar
  • Port thread 21: 1/2" - 14 NPTF
  • Port thread 4/23: 1/4" - 18 NPTF
  • Temperature range: -40°C to +80°C
  • Voltage: 12 V
  • Calculated Volume (dmÂł): 20.95
  • GTIN: 4057875173786
  • Size (mm x mm x mm): 373 x 237 x 237
  • UPC: 193133437956
  • Weight (kg): 9.2
  • Weight (lb): 20.28

CrossReference:

  • FREIGHTLINER: TDAS4324711010
  • KENWORTH: S432-471-101-0
  • MERITOR WABCO: 4324711010
$266.62
Fortpro Air Dryer System Saver 1200 Style Replacement for Wabco Air Dryer 4324711010 | F224870—
$266.62

Product Information

Shipping & Returns

Description


Specifications:

  • Part Type: Air Dryer
  • Technical Specification: OE specification
  • Cartridge type: Desiccant Cartridge and Oil separator
  • Comments: Turbo-cut-off valve installed
  • Cut-out pressure: 8.7 to 9.4 bar
  • Max. operating pressure: 10.0 bar
  • Opening pressure: 12.8 bar
  • Port thread 21: 1/2" - 14 NPTF
  • Port thread 4/23: 1/4" - 18 NPTF
  • Temperature range: -40°C to +80°C
  • Voltage: 12 V
  • Calculated Volume (dmÂł): 20.95
  • GTIN: 4057875173786
  • Size (mm x mm x mm): 373 x 237 x 237
  • UPC: 193133437956
  • Weight (kg): 9.2
  • Weight (lb): 20.28

CrossReference:

  • FREIGHTLINER: TDAS4324711010
  • KENWORTH: S432-471-101-0
  • MERITOR WABCO: 4324711010Â
