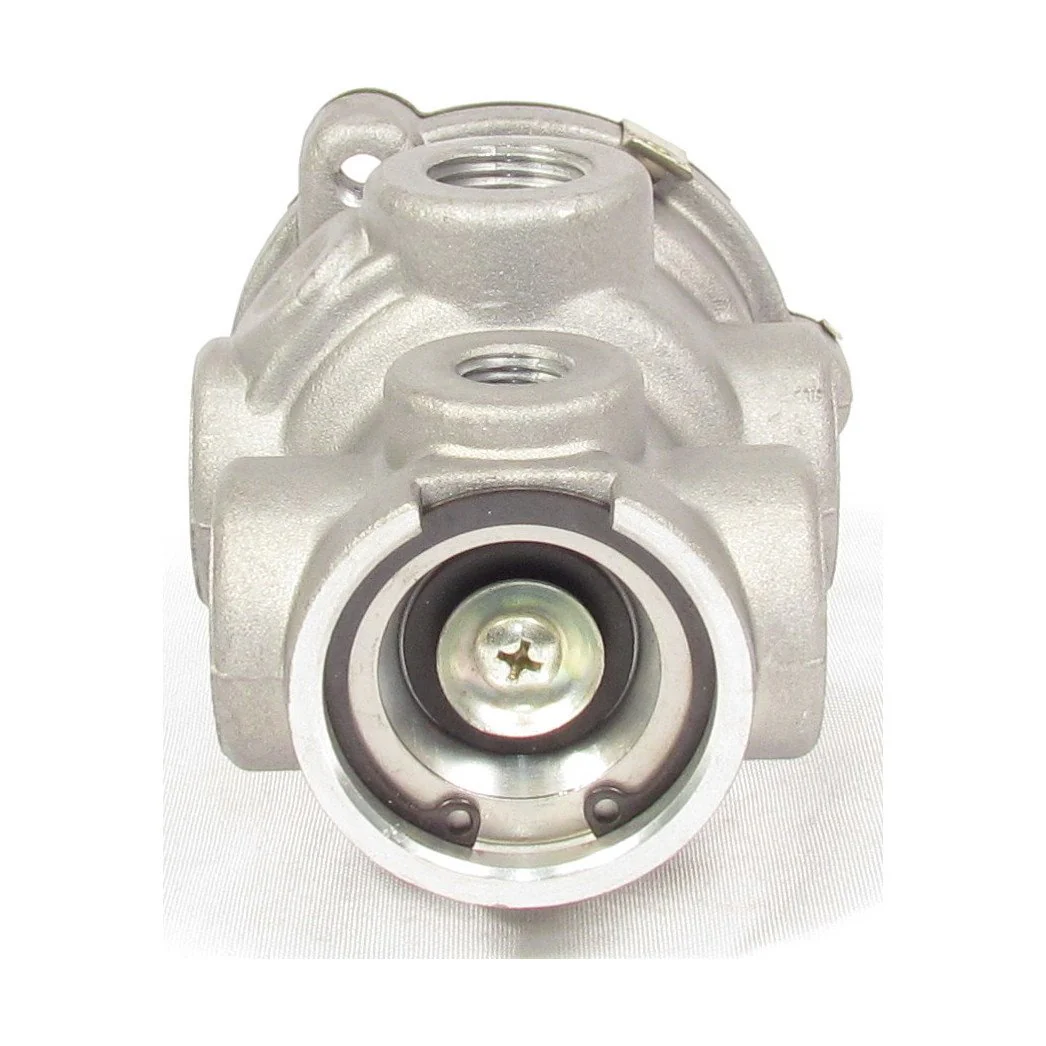

The E-3 Brake Valve is a dependable and time-tested component designed for precise control of service brakes in air brake systems. Commonly used in heavy-duty trucks, buses, and off-road vehicles, this valve ensures smooth brake actuation by modulating air pressure from the brake pedal to the service chambers. Engineered with high-strength aluminum alloy and built to meet or exceed OEM performance standards, the E-3 delivers long-lasting reliability even under extreme operating conditions. Compatible with a wide range of air brake configurations, it features internal components that minimize air leakage and promote consistent response times.

Specifications:

• Part OEM: Bendix 277863
• Part: E-3 Single Circuit Foot Valve
• Mounting Hole Diameter: 5/16-18 in. UNC-3B
• Mounting Hole Quantity: 3
• Supply Ports (2): 1/2” P.T.
• Auxiliary Ports (2): 1/4” P.T.
• Delivery Ports (4): 1/2” P.T.
• Notes: Specially Designed for Use on Buses

CrossReference:

• Automann: 170277863
• Bendix: 277863, 277863N, 277863RX, 277863X
• Bepco Inc: 277863, 277863X
• Euclid: BN277863N
• Haldex: KN22100, KN22100N
• International-Navistar: BX277863N
• Meritor: R955277863N
• PAI: EM36290, LFV3629
• Wabco: RKN22100
