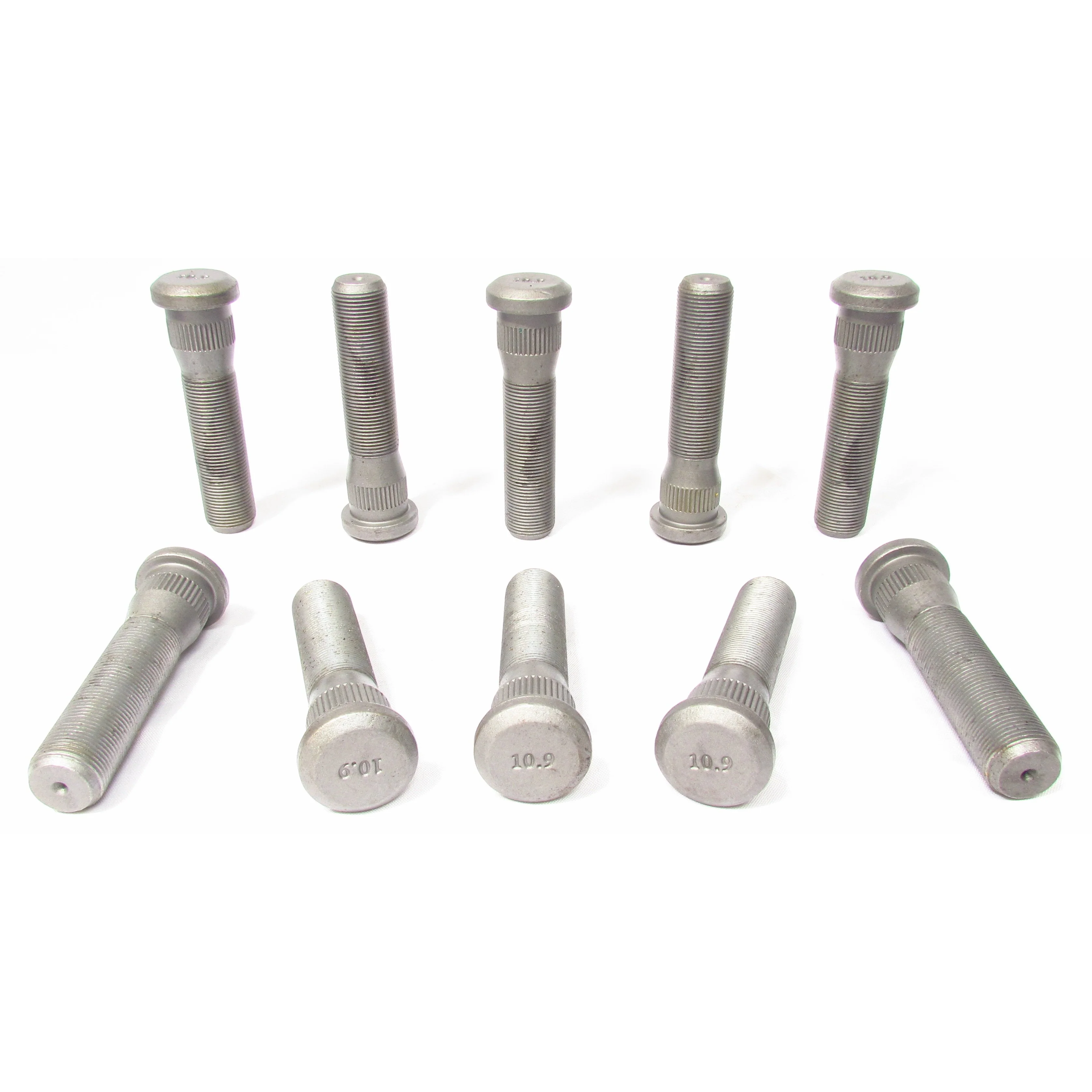

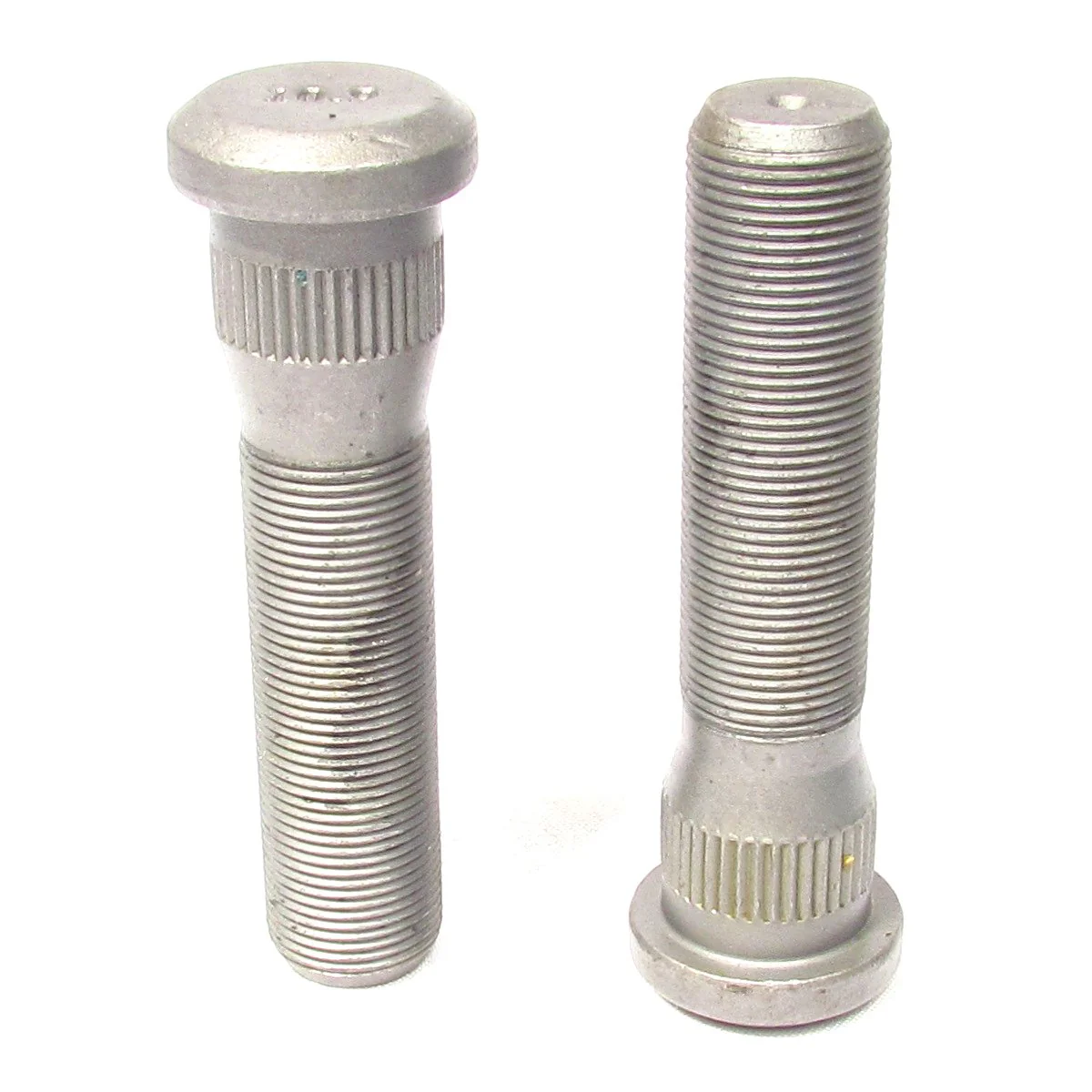

Fortpro M22 x 1.5 Metric Serrated Drive Wheel Stud F286688 designed to provide a secure hold on vehicles with M22 x 1.5 metric threads. Made from high-strength materials, these studs ensure a solid connection between the wheels and wheel hubs, improving vehicle stability and safety.

Specifications:

• Brand: Fortpro
• Part Type: Wheel Stud / Metric Serrated Drive Wheel Stud
• Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
• Part OEM: E6035, E-6035
• DIN / ISO Grade: 10.9
• Type: Headed
• Metric Thread Size: M22 X 1.5-6g
• Body Length (E): 0.72"
• Body Diameter (G): 0.975"
• Length from Under Head (B): 3 15/16"
• Head Diameter (F): 1.31"
• Head Style: Round
• Head Thickness: 0.36"
• Thread (A): M22 x 1.5
• Thread Diameter (H): 22.0 mm
• Wheel End Thread Direction: RH (Right Hand)
• Threads per Inch: 1.5 per mm
• Thread Length (C): 2.19"
• Serration: Serrated
• Serration Length (D): 0.41"
• Serration Diameter: 1.015"
• VMRS: 018-003-009
• Item Package Quantity: 10
• Notes: Grade 10.9 is the metric equivalent of Grade 8

CrossReference:

• Automann: 2016151, 2016151WE, 2016251
