Fortpro M22 x 1.5 Metric Serrated Drive Wheel Stud F286694 is a splined wheel stud specifically designed to provide a secure and reliable connection between wheels and wheel hubs. Constructed with high-strength steel, it offers exceptional durability and adequate strength to withstand the demands of automotive use.

Specifications:

• Brand: Fortpro
• Part Type: Wheel Stud / Metric Serrated Drive Wheel Stud
• Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
• Part OEM: E8986, E-8986
• DIN / ISO Grade: 10.9
• Type: Headed
• Metric Thread Size: M22 X 1.5-6g
• Body Length (E): 1.00"

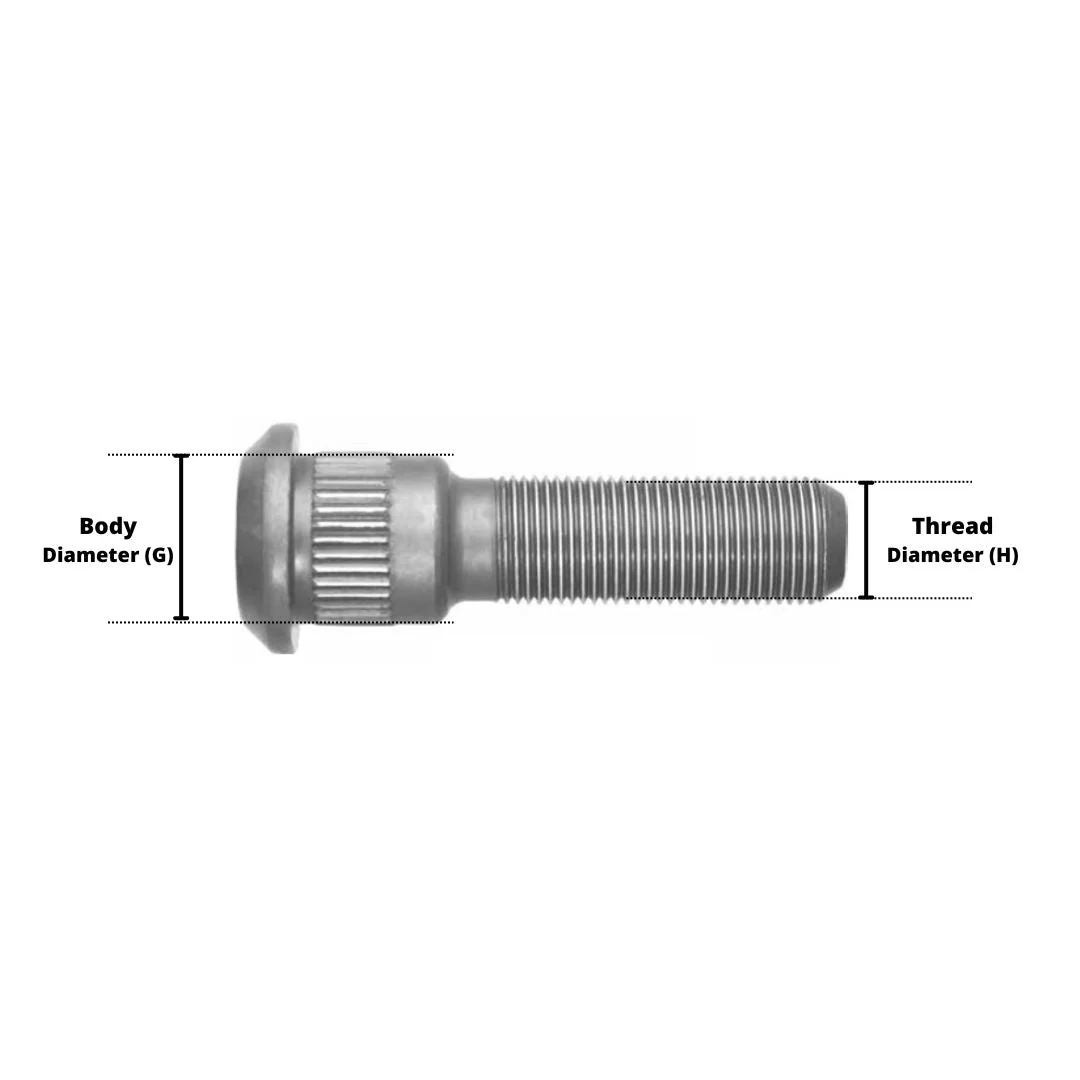

• Body Diameter (G): 1.22"
• Length from Under Head (B): 4 13/32"
• Head Diameter (F): 1.59"
• Head Style: Round
• Head Thickness: 0.328"
• Thread (A): M22 x 1.5
• Thread Diameter (H): 22.0 mm
• Wheel End Thread Direction: RH (Right Hand)
• Threads per Inch: 1.5 per mm
• Thread Length (C): 2.62"
• Serration: Serrated
• Serration Length (D): 0.437"
• Serration Diameter: 1.2626"
• VMRS: 018-003-009
• Item Package Quantity: 10
• Notes: Grade 10.9 is the metric equivalent of Grade 8

CrossReference:

• Automann: 2016172
