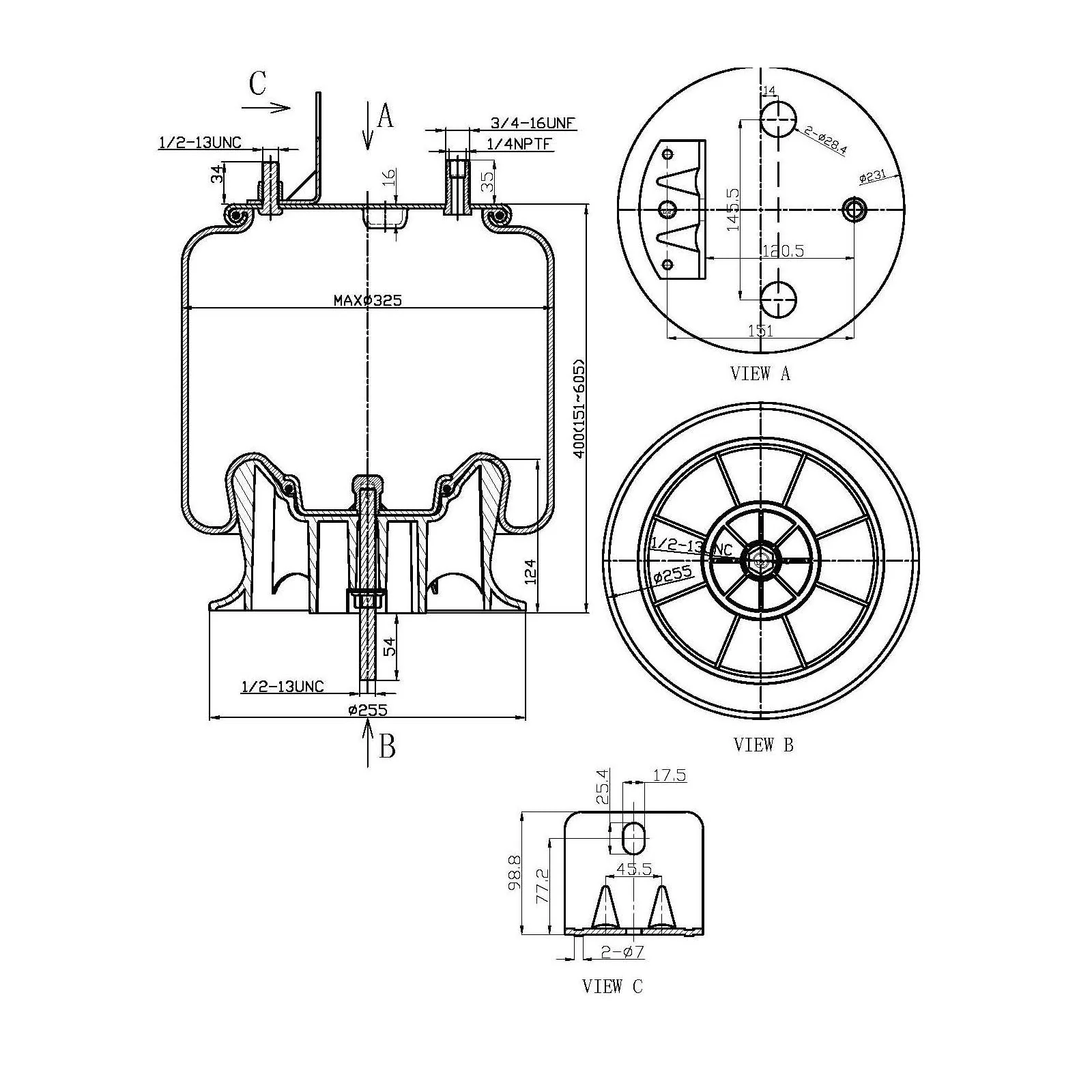

The Fortpro Air Spring F245580 is an air suspension component that elevates performance and comfort in automotive vehicles. Precision manufactured using premium materials and advanced technology, this air spring ensures exceptional durability and strength. With its strong cylindrical design, the F245580 features a reinforced synthetic rubber membrane that offers exceptional load capacity and superior fatigue resistance.

Specifications:

• Brand: Fortpro
• Part Type: Air Spring / Air Spring Bag / Suspension Air Spring
• Vehicle Type: Semi-Trucks, Heavy-Duty Trucks
• Part OEM: W013581191, W01-358-1191
• Position: Primary Truck & Trailer Axle
• Air Spring Style: 1T Reversible Sleeve
• Piston Type: Composite
• Bead Plate Diameter Bottom: 10.00"
• Bead Plate Diameter Top: 9.00"
• Collapsed Height: 5.96"
• Max. Height: 23.79"
• Part Diameter: 10.00"
• Piston Height: 4.65"
• Stud Configuration-Bottom: 1
• Stud Configuration - Top: 2
• Weight:: 12.20 lbs
• Application: Bead plate Bracket (Single Hole) 70-3582-6063; Navistar 3541731C1; Goodyear 1R12-432
• VMRS: 016-008-000
• Notes: W01-358-1191 Replaces W01-358-9875

CrossReference:

• Automann: 566CT73746, AB1DF23IP1067
• Contitech: 910S18P1067(BK)
• Dayton Parts Batco: 1R121077, 1R12432, 3521191
• Firestone: W013581191, W01-358-1191
