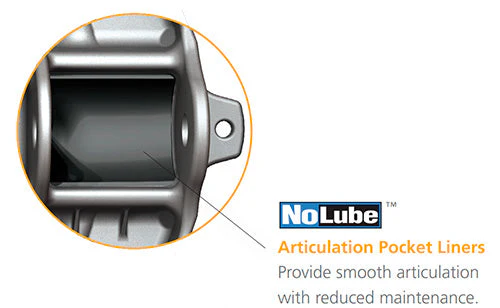

The Fw35 Series is the world's most versatile and proven fifth wheel. This premium fifth wheel, designed for years of guaranteed performance, has been the foundation for revolutionary new ideas that expand fifth wheel function and value. Available in various models, including the FW31 NoLube technology, the FW35 meets the transportation industry's needs for today and beyond.

Specifications:

• Part Type: Fifth Wheel Assembly / 5th Wheel
• Part OEM: W35Y800XL00 (SAF Holland)
• Lube Type: Standard
• Material: Cast Steel
• Top Plate: FW35
• Brackets: RK-Y800 (Left and Right Side Included)
• Height Each: 4 3/4"
• Width Each: 36 1/2"
• Length Each: 35 1/2"
• Kingpin Size: 2"
• Mounting Type: Stationary
• Mounting Style: Foot Mount Bracket
• Maximum Vertical Load Capacity: 55000 lb
• Maximum Drawbar Pull Capacity: 150000 lb

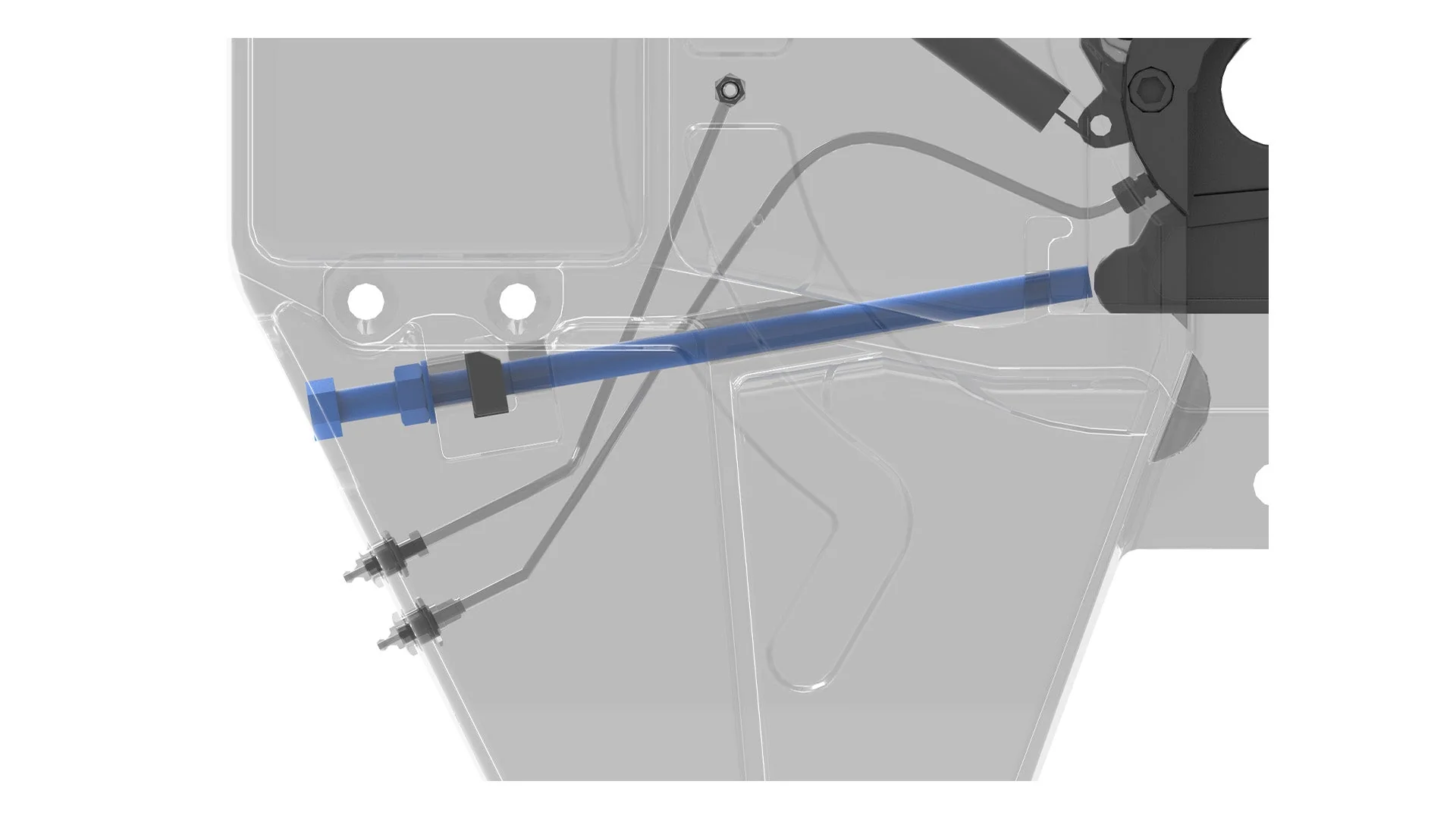

• Release: Left Manual
• Duty Rating: Moderate to severe, on and off-highway



CrossReference:

• SAF-HOLLAND: XA-351-A-L-P

Packing information:

• Weight: 250 lbs
• Measures: 40" x 36" x 10"
